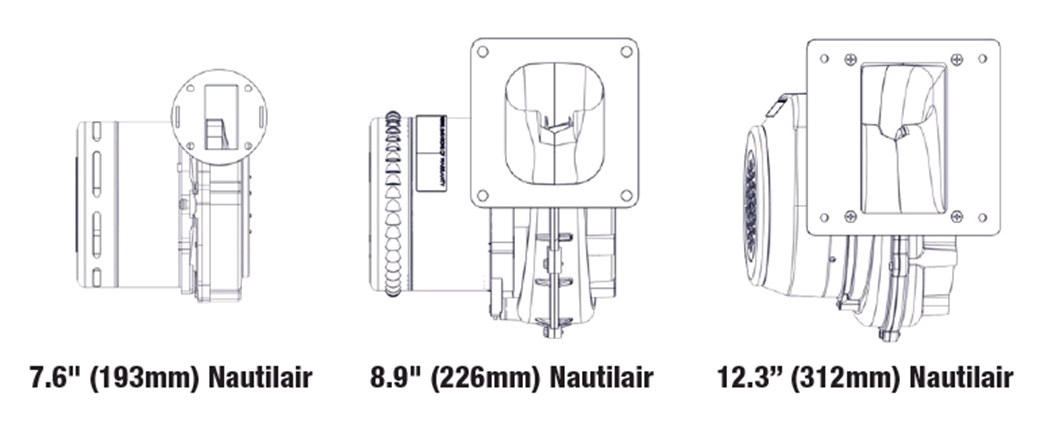

송풍기 크기

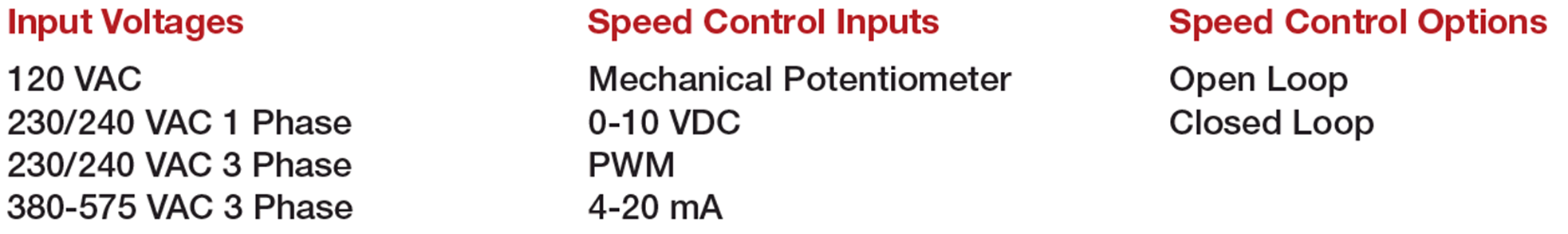

송풍기 전기사양

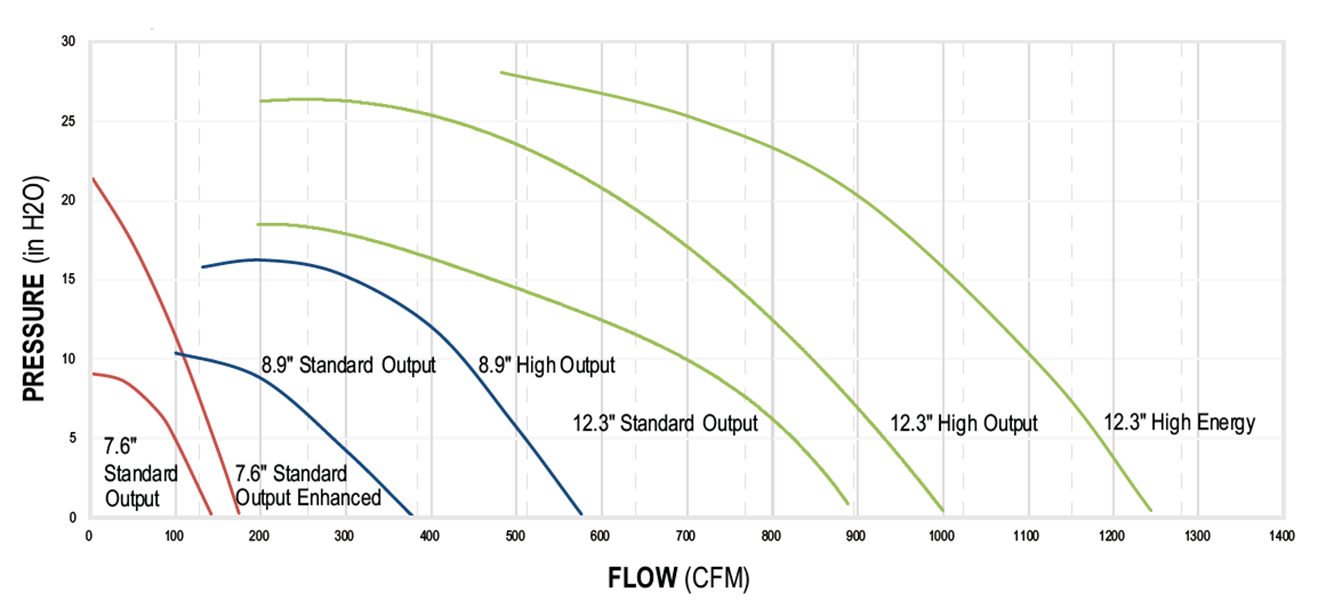

송풍기 성능곡선(PERFORMANCE CURVES)


Product Specs: Nautilair (TM) 7.6" Blowers
149061
Brand Blower Diameter Operating Voltage Max Flow
(Cfm)
Max Pressure
(In. H2O)
Product
Spec.
카다로그
페이지
Nautilair ™ 7.6" (193mm) 12/24 VDC Input, 표준 Output 125/150 15 pdf B25
Nautilair ™ 7.6" (193mm) 120 VAC Input, 1 Phase, 표준 Output 140 14 B27
Nautilair ™ 7.6" (193mm) 240 VAC Input, 1 Phase, 표준 Output 141 15 B29
Nautilair ™ 7.6" (193mm) 240 VAC Input, 1 Phase, High Output 160 45 B31
Nautilair ™ 7.6" (193mm) 120 VAC Input, 1 Phase, 표준 Output Enhanced 160 21 B33
Nautilair ™ 7.6" (193mm) 240 VAC Input, 1 Phase, 표준 Output Enhanced 180 21 B35
Nautilair ™ 7.6" (193mm) 120 VAC Input, 1 Phase, High Output 175 43 B37
Nautilair ™ 8.0" (203mm) 120 VAC Input, 1 Phase, 표준 Output 100 9 B39


Product Specs: Nautilair (TM) 8.9" Blowers
149061
Brand Blower Diameter Operating Voltage Max Flow
(Cfm)
Max Pressure
(In. H2O)
Product
Spec.
카다로그
페이지
Nautilair ™ 8.9" (226mm) 120 VAC Input, 1 Phase, 표준 Output 380 9 pdf B41
Nautilair ™ 8.9" (226mm) 120 VAC Input, 1 Phase, High Output 475 13 B43
Nautilair ™ 8.9" (226mm) 240 VAC Input, 1 Phase, 표준 Output 390 9 B45
Nautilair ™ 8.9" (226mm) 240 VAC Input, 1 Phase, High Output 540 14 B47


Product Specs: Nautilair (TM) 12.3" Blowers
149061
Brand Blower Diameter Operating Voltage Max Flow
(Cfm)
Max Pressure
(In. H2O)
Product
Spec.
카다로그
페이지
Nautilair ™ 12.3" (312mm) 120 VAC, 1 Phase, 표준 Output 790 14 pdf B49
Nautilair ™ 12.3" (312mm) 240 VAC Input, 1 Phase, 표준 Output 790 18 B51
Nautilair ™ 12.3" (312mm) 240 VAC Input, 3 Phase, High Output 1050 20 B53
